XL-KGF6
XINGLE
Designed for oral liquid and syrup production lines, this machine solves common industry pain points including foaming, capping difficulties, and poor sealing. Featuring tracking filling and precision screw feeding technology, it ensures high efficiency and stable operation – ideal for pharmaceutical, nutraceutical, and food industries.
❌ Foaming during filling → inaccurate dosage
❌ Poor sealing → leakage or contamination risk
❌ Different cap types (aluminum-plastic / flip-top) requiring multiple machines
❌ Bottle jamming or toppling → reduced line efficiency
Our machine solves all of the above in one integrated system.

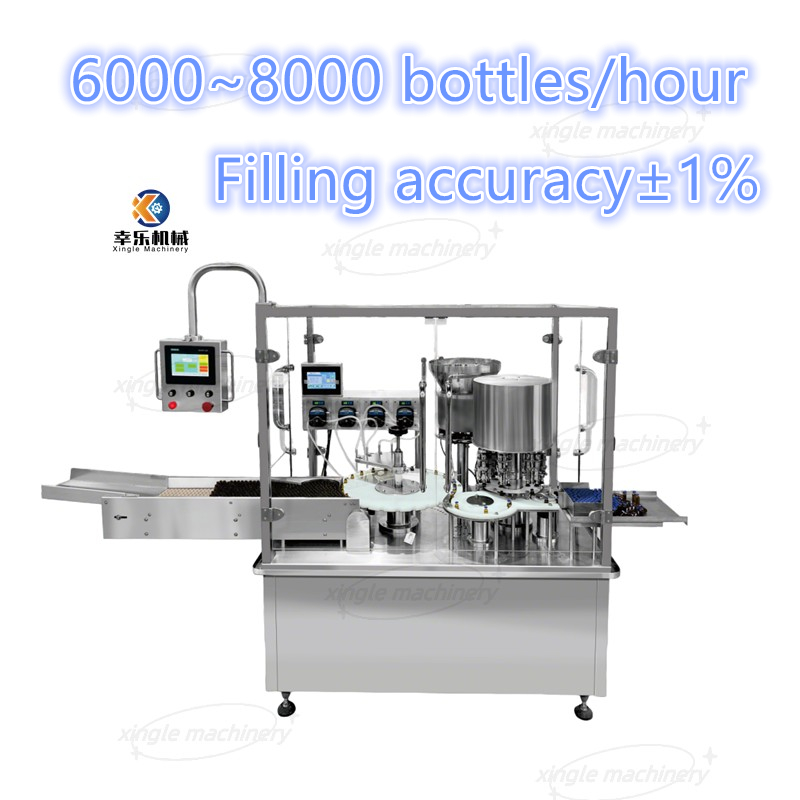

1. Efficient and Stable: The Syrup Filling and Capping Machine boasts a production capacity of 6,000-8,000 bottles per hour, continuously providing strong power for your production line.
2. Accurate and Reliable: Filling accuracy is strictly controlled within ±1%, ensuring consistent volume in every bottle and effectively saving costs.

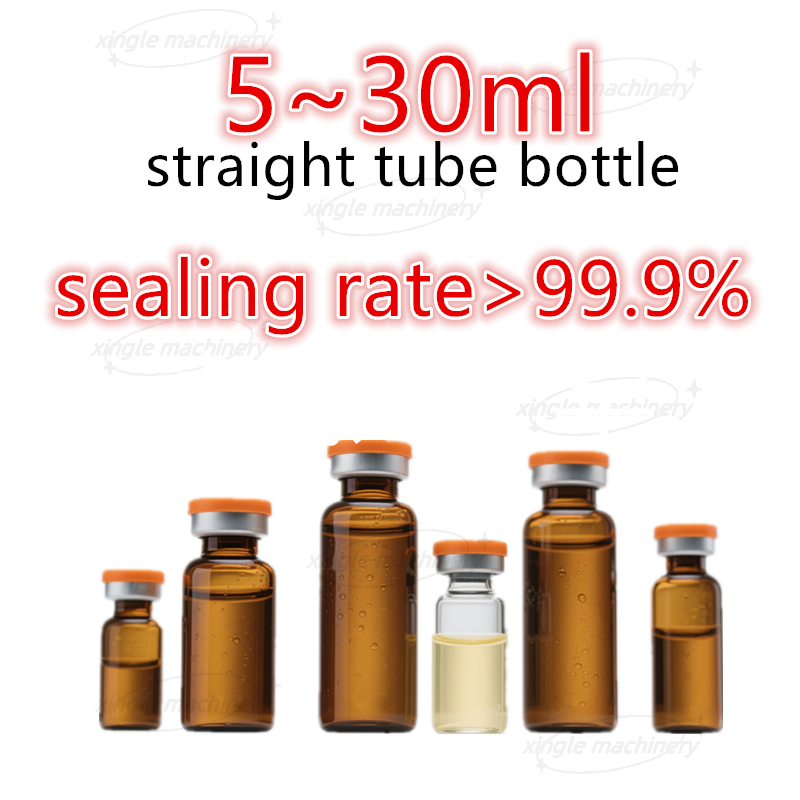

3. Excellent Sealing: Utilizing advanced sealing technology, the machine boasts a sealing success rate exceeding 99.9%, greatly ensuring product sealing and safety.
4. Strong Compatibility: The Automatic Filling and Capping Machine is compatible with a wide range of closure types, including aluminum-plastic caps and flip-top lids, to meet your diverse packaging needs.
5. Utilizing precision screw feeding technology, the machine ensures even, orderly bottle conveying, ensuring smooth operation and effectively preventing bottle jams and tipping, ensuring a consistent and reliable production process.

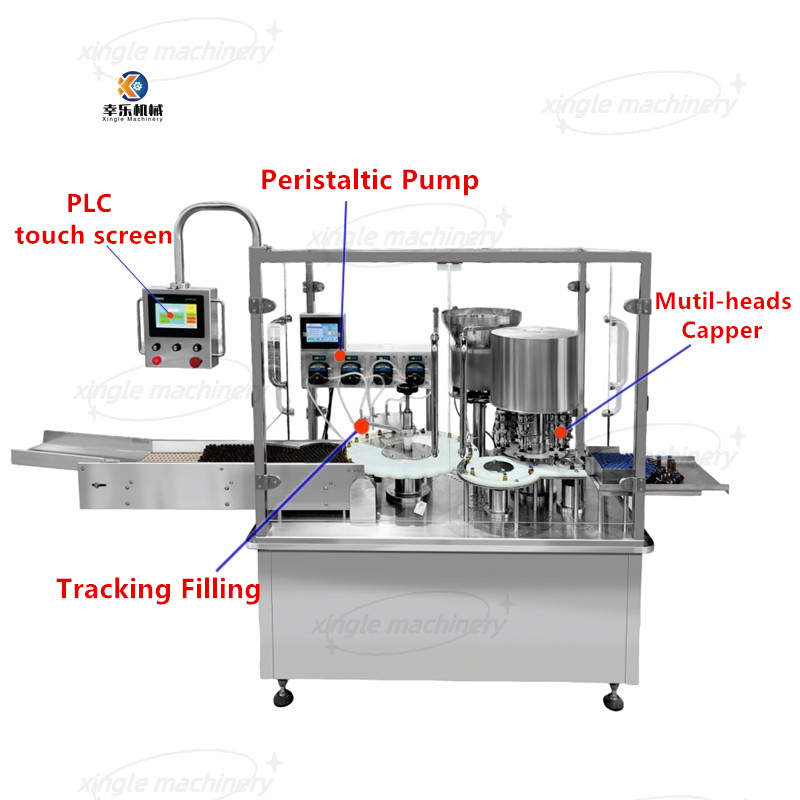

6. The Vial Filling Machine's unique local tracking filling design allows the filling head to move with the bottle, achieving uniform filling speed and effectively preventing foaming.
7. The filling and sealing stations are highly integrated into one, which not only has a compact structure and saves space, but also reduces the transfer links of bottles, reduces the risk of contamination, and complies with GMP standards.
Applications of the Automatic Vial Filling and Capping Machine
1. Pharmaceutical Industry: Various oral liquid preparations, syrups, and mixtures.
2. Health Products Industry: Nutritional supplements, liquid health products.
3. Food Industry: Small-dose liquid foods such as honey, jam, and concentrated juice.
Q1: Can this machine handle thick syrup without foaming?
A: Yes. The tracking filling design allows nozzles to move synchronously with bottles, ensuring smooth liquid flow and effectively preventing foam during syrup filling.
Q2: Do I need to change parts when switching between different cap types?
A: No. This machine is compatible with aluminum-plastic caps, flip-top caps, and more. Switching is simple and requires no core component replacement.
Q3: Is the machine GMP compliant?
A: Yes. It is built with stainless steel and features highly integrated filling and capping stations, reducing product transfer steps and contamination risk.
