XL-KGF-Z
XINGLE

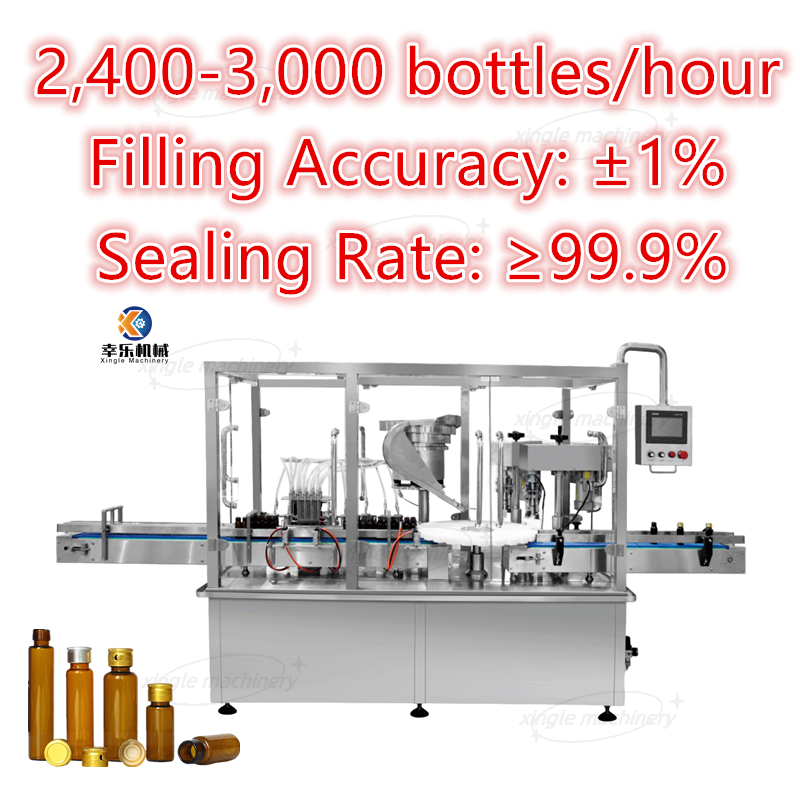

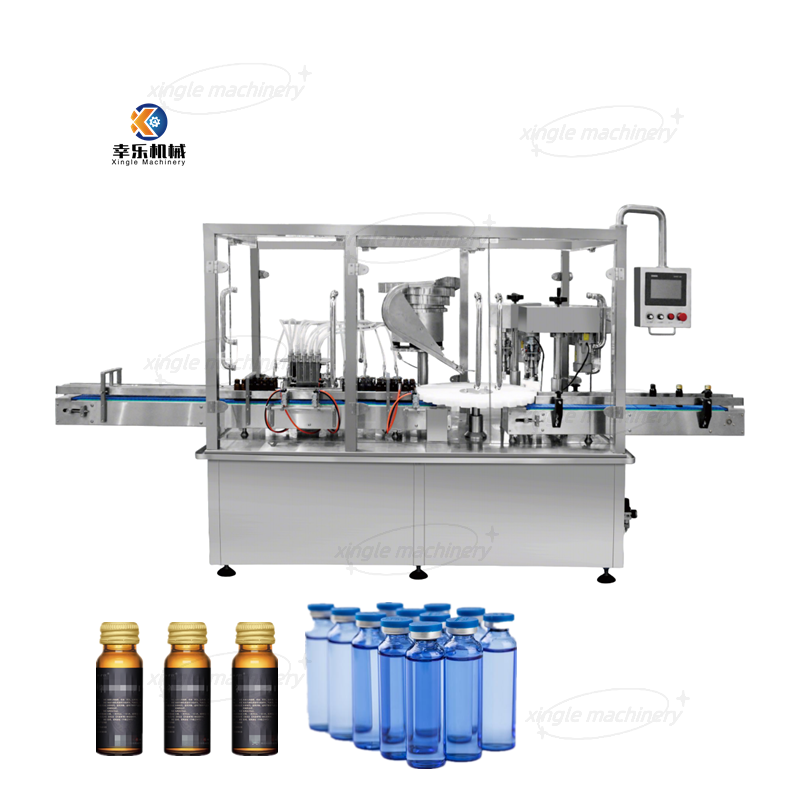

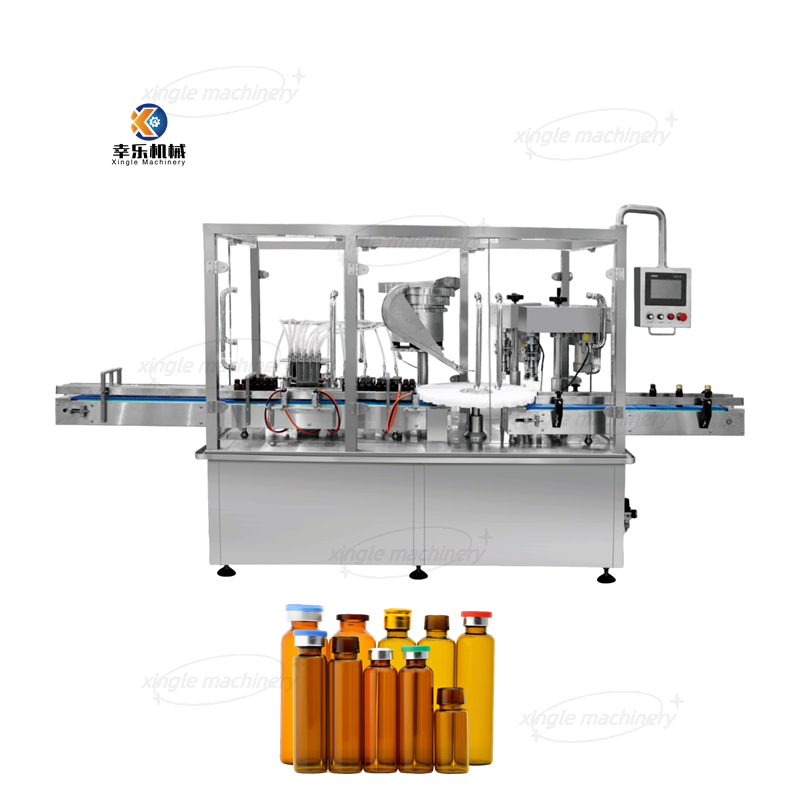

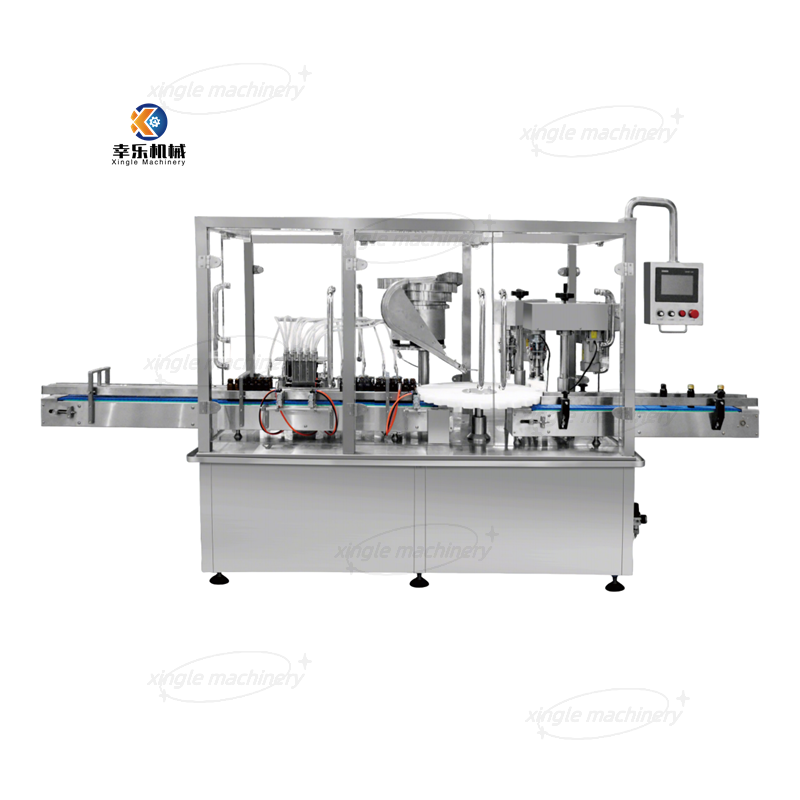

Fully automatic oral liquid filling and sealing machine is the core host of the modern oral liquid production line. It is specially designed for the precise filling and sealing of 5~30ml vials (straight tube bottles). This machine innovatively integrates the three functions of filling, capping and sealing. With its advanced design concept and compact structural layout, it provides an efficient and reliable overall solution for the pharmaceutical, health care products and food industries. It is an ideal choice to improve production efficiency and ensure product quality.
Vial Filling Machines complete the entire process from empty bottles to finished products through five closely connected automated steps:
1. Orderly feeding of bottles: The conveyor belt feeds empty bottles, and the bottle dividing screw turns the continuous bottles into spaced arrangements, and is accurately positioned by the star wheel to the filling station.
2. Precise filling: the filling head automatically lowers, and the filling needle goes deep into the bottom of the bottle. High-precision quantitative filling is achieved by the pump, with an accuracy of up to ±1%. The spray gun automatically lifts after filling.
3. Automatic capping: The cap is automatically arranged and oriented by the electromagnetic oscillator to ensure that the mouth is facing downwards, and accurately falls to the bottle mouth through the slide.
4. Rolling sealing: The bottle with the cap on is moved to the sealing station, and the sealing rolling head rolls the bottle cap under pressure to deform and lock the bottle mouth to achieve a firm seal with a sealing rate of ≥99.9%.
5. Finished product output: The sealed oral liquid bottles are taken out by the star wheel and sent to the next process via the conveyor belt.
Automatic Filling And Sealing Machine is widely used in:
1. Pharmaceutical industry: various oral liquid preparations, syrups, and health care oral liquids.
2. Health care products industry: nutritional supplement solutions, oral liquid health care products.
3. Food industry: high-end drinks, honey, jelly liquid, etc.
Whether it is mass production of small and medium-sized enterprises or large-scale production lines of large enterprises, it can easily meet production needs. Liquid Vial Filling Machine can not only significantly improve production efficiency and reduce labor costs, but also ensure stable product quality through high-precision filling and high-reliability sealing, helping companies gain an advantage in the fierce market competition.
