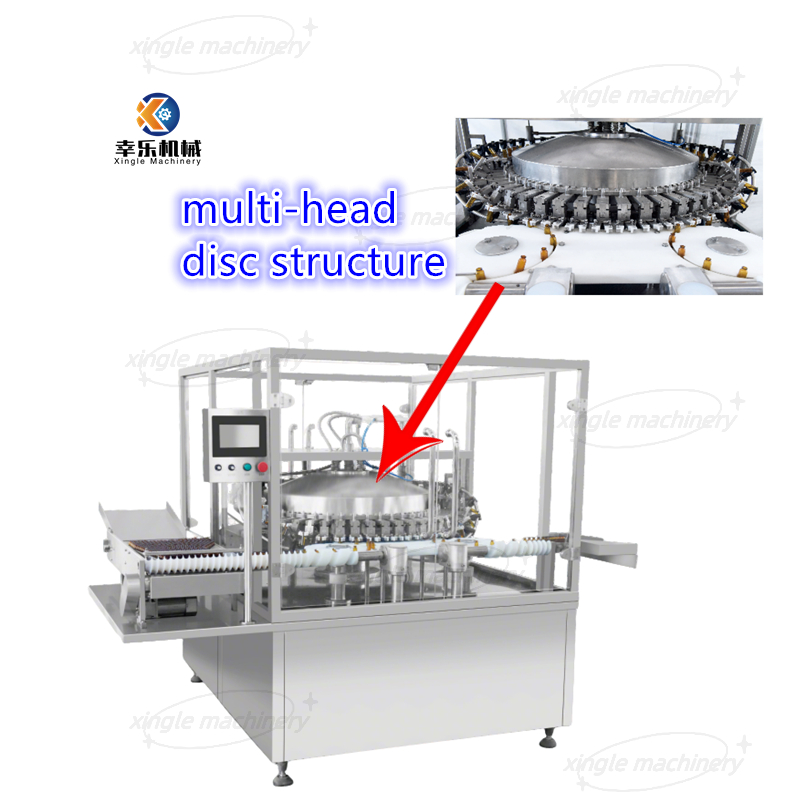

Bottle washer is constructed from premium stainless steel for its body and material-contacting parts, offering excellent corrosion and contamination resistance, easily meeting stringent cleaning and disinfection requirements, and ensuring GMP compliance from the source. Compared to traditional cleaning equipment, its innovative multi-head disc structure significantly improves cleaning efficiency and consistency, while the intelligent motion control system ensures consistent cleaning quality for every batch of bottles.

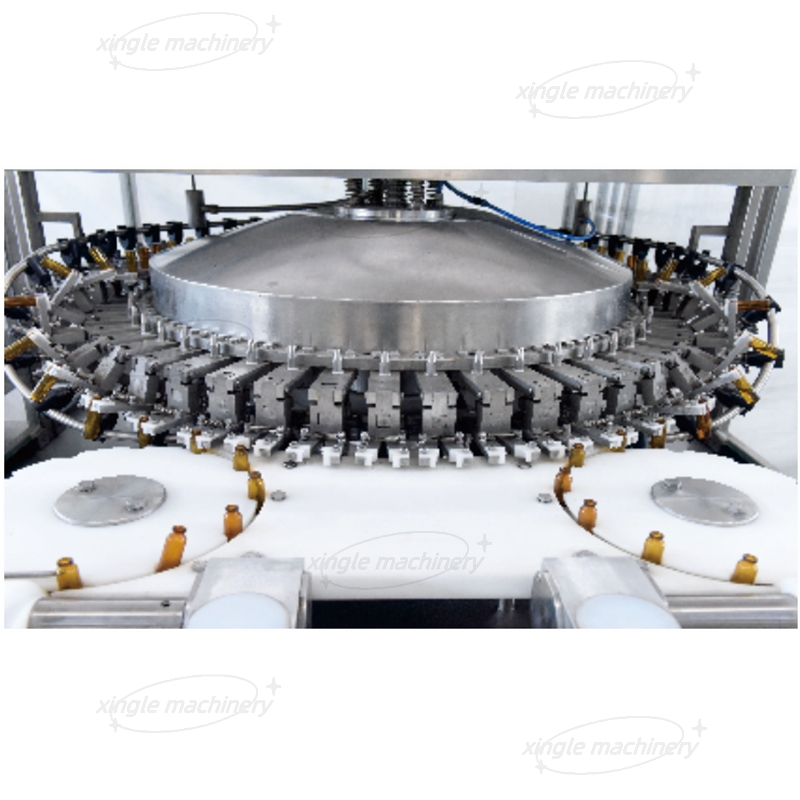

Bottle washing machine employs a scientifically designed cleaning process. A high-precision bottle-separating mechanism smoothly delivers the glass bottles to be cleaned to the equal-separation jaws. The specially designed jaws securely clamp bottles of different sizes, ensuring accurate bottle positioning and stable operation during the cleaning process. The cleaning stage utilizes a multi-stage, simultaneous internal and external rinsing process: "purified water - purified compressed air - purified water - purified compressed air".

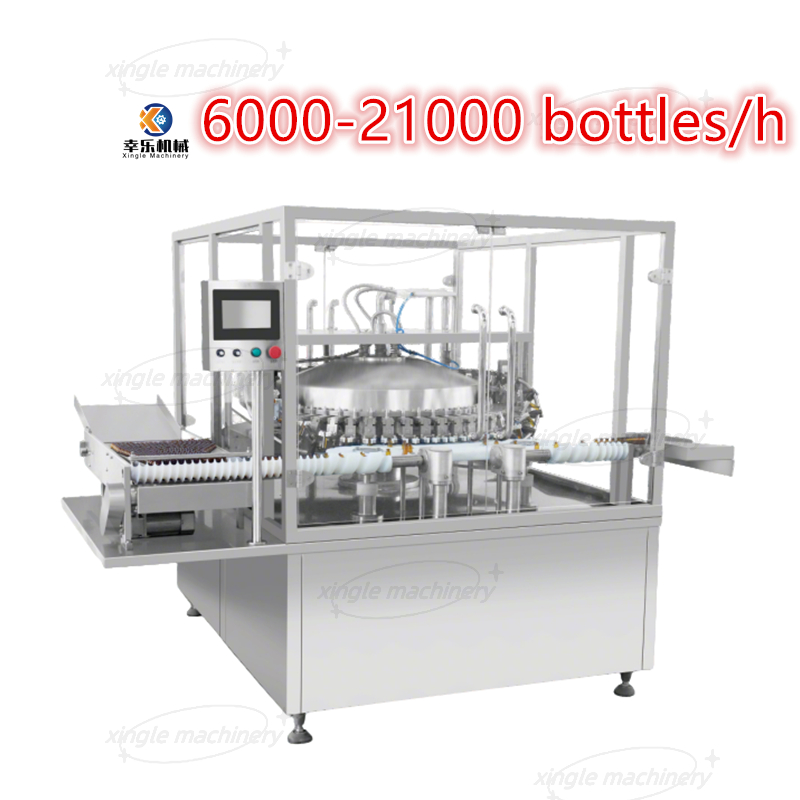

1. Production Capacity: 6000~21000 bottles/hour, flexibly adjustable to meet production needs, suitable for all scenarios from small-batch trial production to large-scale mass production.

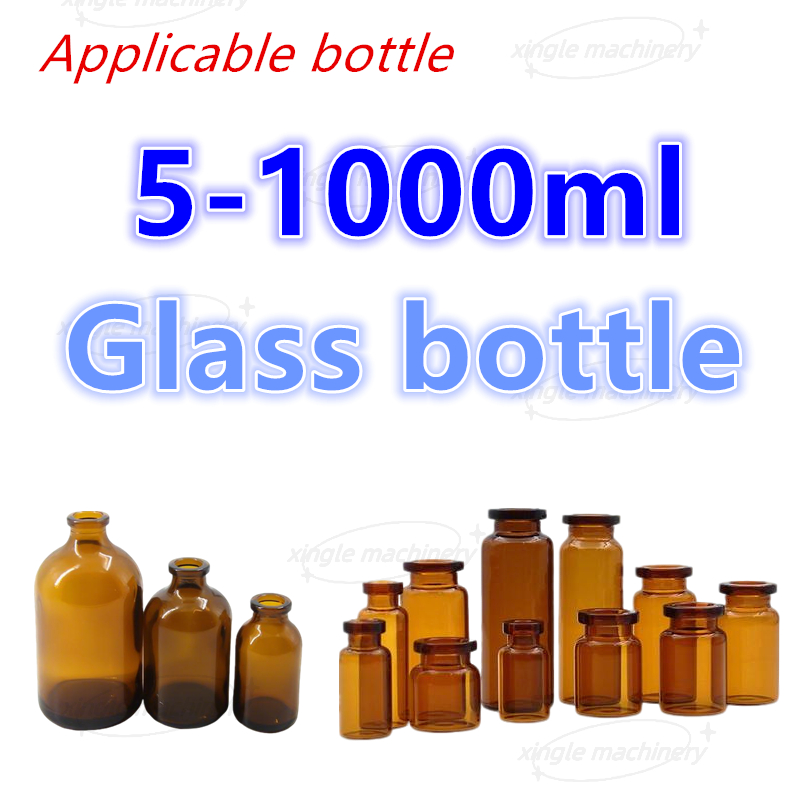

2. Applicable Bottles: The bottle cleaning machine is compatible with various sizes of pharmaceutical and health product packaging glass bottles (5-1000ml), eliminating the need for frequent mold changes and reducing production changeover costs.
3. Water Resource Utilization: The Glass Bottle Washing Machine uses a recycled water flow rate of 0.8m³/h, employing a high-efficiency water circulation system to ensure effective cleaning while achieving reasonable water resource recycling and reducing energy consumption.
4. Media Consumption: Injection water consumption is 0.8m³/h, and purified compressed air consumption is 40m³/h. Media consumption is precisely controlled, balancing cleanliness and economy.
5. Power Requirements: The Vial Washer uses a 380V 50Hz three-phase four-wire system, compatible with common industrial power supply specifications, and is easy to install.
Stainless Steel Bottle Washer is designed specifically for pharmaceutical companies (such as those producing injectable, oral, and topical formulations) and health supplement manufacturers. Whether used for cleaning raw material bottles, formulation bottles, or packaging bottles, it perfectly meets production needs. It strictly complies with GMP production requirements and can pass relevant compliance tests, providing strong support for companies to successfully pass production qualification audits. At the same time, the equipment has a simple structure, and key components are easy to disassemble for cleaning and maintenance, reducing equipment downtime and improving production efficiency.
GMP Stainless Steel Automatic Disc-Type Glass Bottle Washer, with "high efficiency, cleanliness, compliance, and stability" as its core competitiveness, builds a solid cleanliness barrier for pharmaceutical and health supplement production, making it the preferred equipment for companies to improve production quality and efficiency.
Bottle washer is constructed from premium stainless steel for its body and material-contacting parts, offering excellent corrosion and contamination resistance, easily meeting stringent cleaning and disinfection requirements, and ensuring GMP compliance from the source. Compared to traditional cleaning equipment, its innovative multi-head disc structure significantly improves cleaning efficiency and consistency, while the intelligent motion control system ensures consistent cleaning quality for every batch of bottles.
Bottle washing machine employs a scientifically designed cleaning process. A high-precision bottle-separating mechanism smoothly delivers the glass bottles to be cleaned to the equal-separation jaws. The specially designed jaws securely clamp bottles of different sizes, ensuring accurate bottle positioning and stable operation during the cleaning process. The cleaning stage utilizes a multi-stage, simultaneous internal and external rinsing process: "purified water - purified compressed air - purified water - purified compressed air".
1. Production Capacity: 6000~21000 bottles/hour, flexibly adjustable to meet production needs, suitable for all scenarios from small-batch trial production to large-scale mass production.
2. Applicable Bottles: The bottle cleaning machine is compatible with various sizes of pharmaceutical and health product packaging glass bottles (5-1000ml), eliminating the need for frequent mold changes and reducing production changeover costs.
3. Water Resource Utilization: The Glass Bottle Washing Machine uses a recycled water flow rate of 0.8m³/h, employing a high-efficiency water circulation system to ensure effective cleaning while achieving reasonable water resource recycling and reducing energy consumption.
4. Media Consumption: Injection water consumption is 0.8m³/h, and purified compressed air consumption is 40m³/h. Media consumption is precisely controlled, balancing cleanliness and economy.
5. Power Requirements: The Vial Washer uses a 380V 50Hz three-phase four-wire system, compatible with common industrial power supply specifications, and is easy to install.
Stainless Steel Bottle Washer is designed specifically for pharmaceutical companies (such as those producing injectable, oral, and topical formulations) and health supplement manufacturers. Whether used for cleaning raw material bottles, formulation bottles, or packaging bottles, it perfectly meets production needs. It strictly complies with GMP production requirements and can pass relevant compliance tests, providing strong support for companies to successfully pass production qualification audits. At the same time, the equipment has a simple structure, and key components are easy to disassemble for cleaning and maintenance, reducing equipment downtime and improving production efficiency.
GMP Stainless Steel Automatic Disc-Type Glass Bottle Washer, with "high efficiency, cleanliness, compliance, and stability" as its core competitiveness, builds a solid cleanliness barrier for pharmaceutical and health supplement production, making it the preferred equipment for companies to improve production quality and efficiency.
