XL-8D
XINGLE

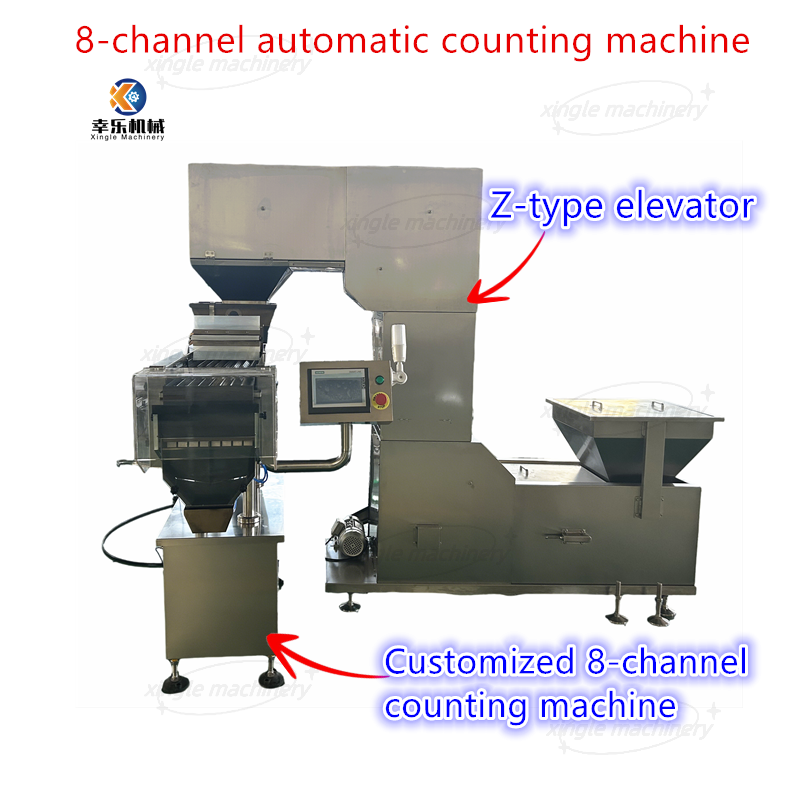

8-channel grain counting system utilizes the dual technology of "photoelectric sensing + intelligent algorithm" to improve counting speed while minimizing errors, addressing the pain points of low efficiency and large manual counting errors associated with traditional single-channel grain counting.
Z-type elevator utilizes a combined "vertical + horizontal" conveying structure, eliminating the height restrictions imposed by traditional elevators. It also offers the advantages of strong sealing and smooth conveying, seamlessly connecting front-end material storage with back-end grain counting processes.
1. Innovative 8-Channel Counting: Utilizing a dual technology of "photoelectric sensing + intelligent algorithm," the counting speed far exceeds that of traditional single-channel equipment, while minimizing errors and solving the industry pain points of low efficiency and large errors associated with manual counting.
2. High-Efficiency Z-Type Elevator: Employing a combined "vertical + horizontal" conveying structure, it breaks through the height limitations of traditional elevators and boasts advantages such as strong sealing and smooth conveying, achieving seamless integration between material storage and back-end counting.

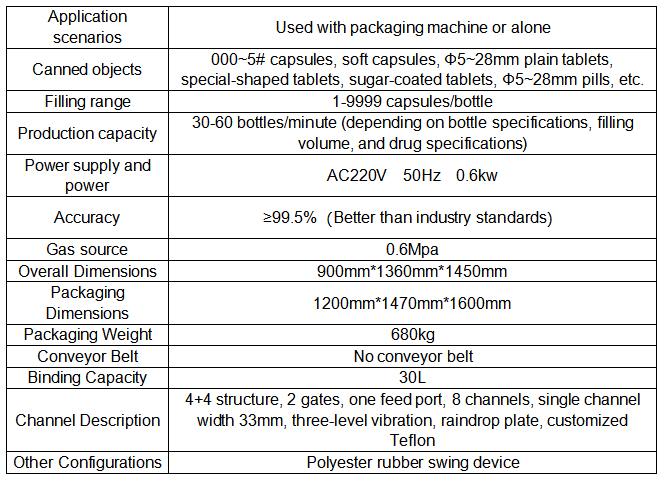

3. Compatibility and Accuracy: The single channel is widened to 33mm, compatible with materials of various sizes, including capsules, tablets, gummies, and nuts. Combined with a material vibration design, it effectively eliminates material overlap, ensuring counting accuracy.
4. Intelligent Monitoring and Safety: Equipped with bottle detection (no operation without a bottle), material shortage/over-quantity alarms, and photoelectric self-checking functions, it ensures stable production line operation and reduces maintenance costs.
Automatic Counting Machine Applicable Industries and Materials：

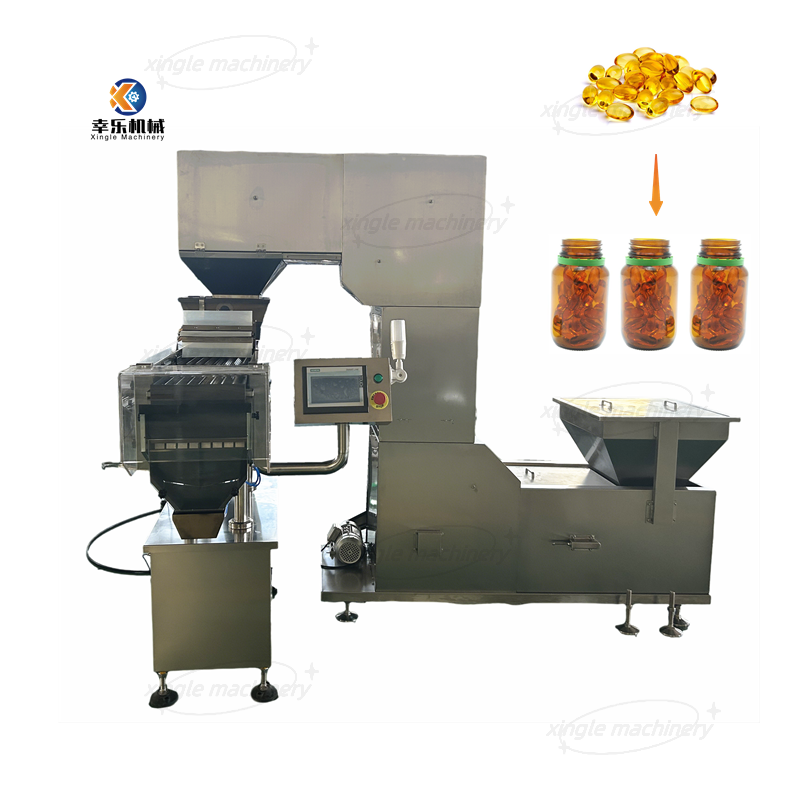

1. Counting capsules, tablets, softgels, dripping pills, and small pellets before packaging into bottles or bags;

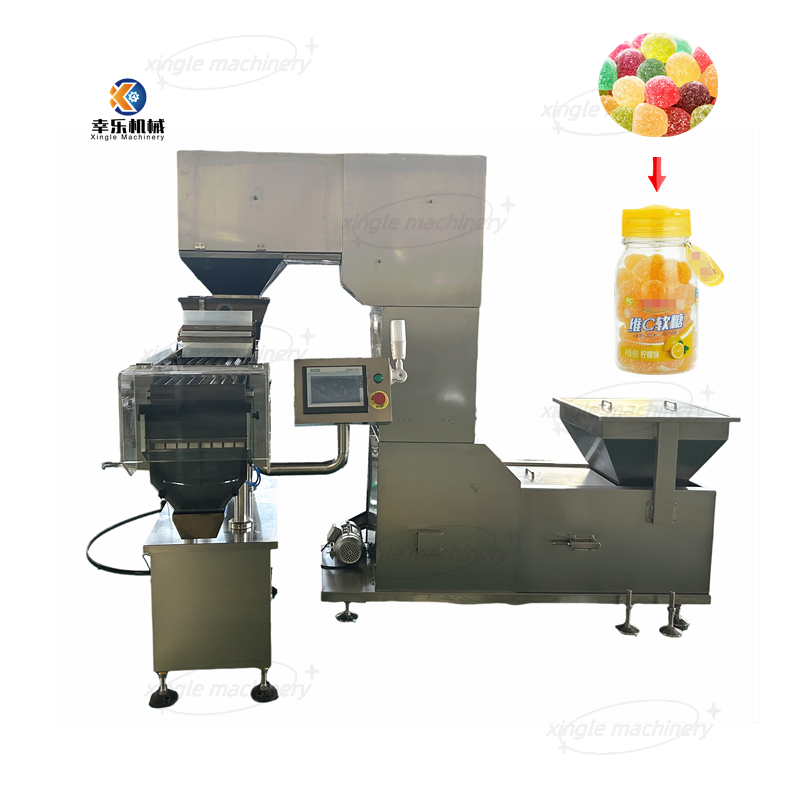

2. Food Industry: Quantitative packaging of nuts (such as almonds and walnuts), candies, and freeze-dried food granules;
3. Chemical Industry: Counting and packaging small plastic granules, fertilizer granules, laundry tablets, etc.;
4. Health Products Industry: Batch counting of fish oil softgels, vitamin tablets, and protein powder granules.
5. The 8-lane system and Z-type elevator work together to increase production efficiency by over 80% compared to traditional equipment, meeting large-scale production needs.
Why Choose Us?
Professional Manufacturing Experience: Years of experience in the R&D and manufacturing of counting and packaging equipment, accumulating rich industry application experience;
Core Independent Technologies: Our photoelectric sensing algorithms and PLC control systems are independently developed, enabling rapid response to customized customer needs;
Full-Process Service: We provide one-stop service from needs assessment, solution design, equipment manufacturing, installation and commissioning to after-sales maintenance;
Global Customer Cases: Our equipment has been exported to many countries and regions, receiving widespread recognition from customers in the food and pharmaceutical industries.
