XL-16
XINGLE

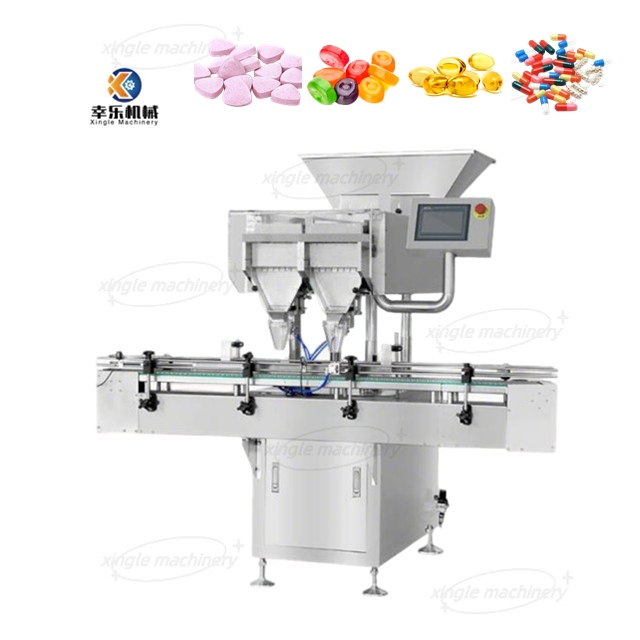

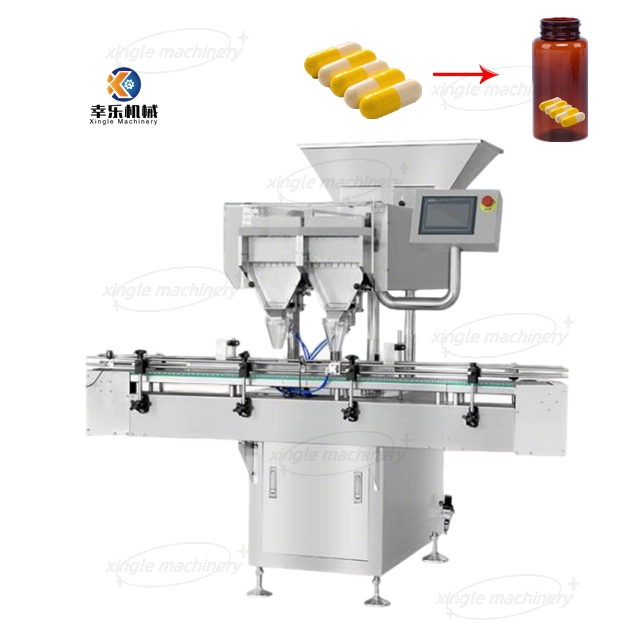

This automatic multi-channel tablet and capsule counter integrates photoelectric detection, intelligent vibratory feeding, and synchronized multi-lane counting into a single, high-performance system designed for fully automated high-speed packaging of capsules, tablets, softgels, and other granular solid dosage forms.

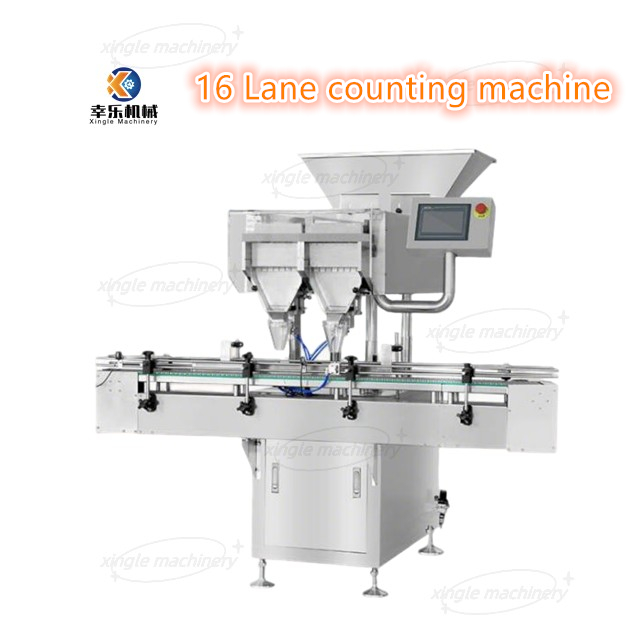

Engineered specifically for the pharmaceutical, nutraceutical, and food industries, this 16-lane capsule counting and filling machine features a modular design that supports customized configurations and meets stringent GMP production standards. With bottling accuracy exceeding 99.5%—surpassing industry benchmarks—this high-speed tablet and capsule counter delivers superior filling efficiency and precision across round, square, plastic, and glass bottle types
1. The capsule counter machine uses a photoelectric sensor to monitor whether there are bottles at the feeding port in real time, realizing intelligent control of no bottle and no operation, avoiding idling and wasting materials or miscounting.
2. 16 channels of independent vibration are suitable for high throughput requirements (such as pharmaceutical and health care products industries), up to 20-80 bottles/minute.
3. Built-in vibration sensor feedback signal, dynamically adjust the output frequency, ensure vibration stability (such as preventing material blockage) and low noise operation (suitable for clean environment).
4. The automatic capsule counting machine drives the corrugated plate to vibrate through electromagnetic force, so that the capsules are arranged in order and move in a directional manner.
5. The capsule counting machine controls the start and stop and speed of the conveyor belt through the speed control switch, adapting to different bottle types or production rhythm requirements to improve efficiency.
Multi-channel capsule counting machine is widely used in various capsule production and packaging scenarios:
1. Bottle counting of western medicines such as antibiotic capsules (cephalosporins) and sustained-release capsules (omeprazole), with high precision and avoiding cross contamination.
2. Quantitative filling of Liuwei Dihuang capsules and Chinese medicine extract capsules. Adapt to irregular pills (need to customize the vibration plate corrugation) and prevent adhesion.
3. Quantitative packaging of fish oil soft capsules, vitamin E soft capsules, probiotic capsules, and melatonin tablets. Gentle vibration (to prevent deformation of soft capsules), linked with desiccant bagging machine to achieve moisture-proof packaging.
4. Bottle counting of pet anthelmintics and veterinary antibiotics. Large-capacity packaging and corrosion-resistant materials (stainless steel) meet the needs of the veterinary industry for low-cost and high-efficiency packaging.
Why Choose This 16-Channel Capsule Counting and Filling Machine?
Superior Accuracy: Achieves bottling accuracy ≥99.5%, surpassing industry standards
High-Speed Production: Processes 20–80 bottles per minute with 16 independent counting channels
GMP-Compliant Design: All product contact surfaces constructed from pharmaceutical-grade stainless steel
Intelligent Controls: Photoelectric sensors, vibration feedback, and no-bottle no-fill automation
Versatile Application: Handles capsules, tablets, softgels, pills, and irregular-shaped solid dosage forms
Modular Customization: Configurable to meet specific production requirements
Low Maintenance: Easy disassembly and cleaning, minimal wear part
