| Quantity: | |
|---|---|
XL-WG01
XINGLE

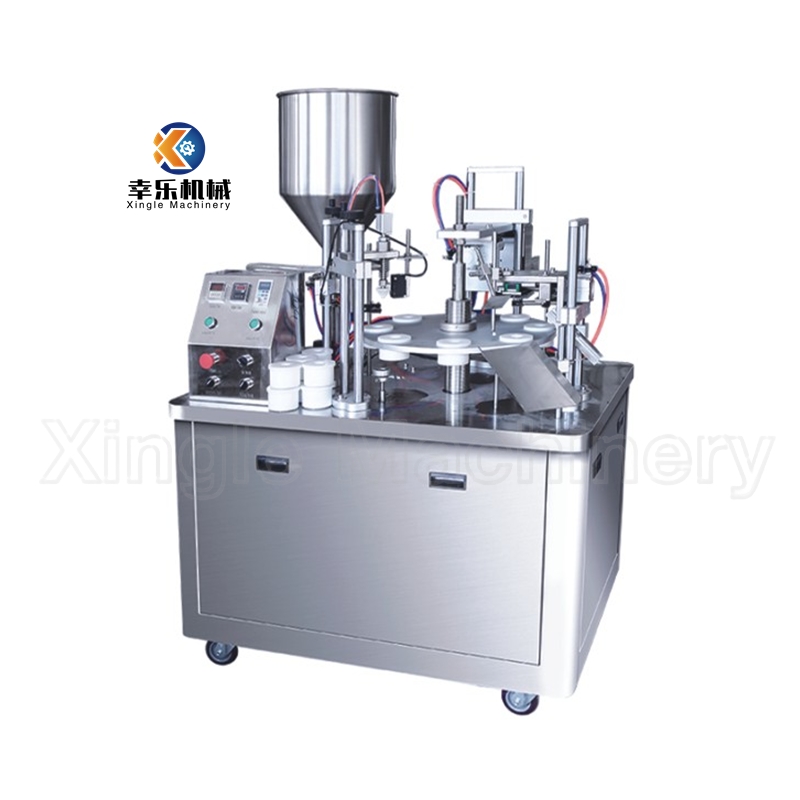

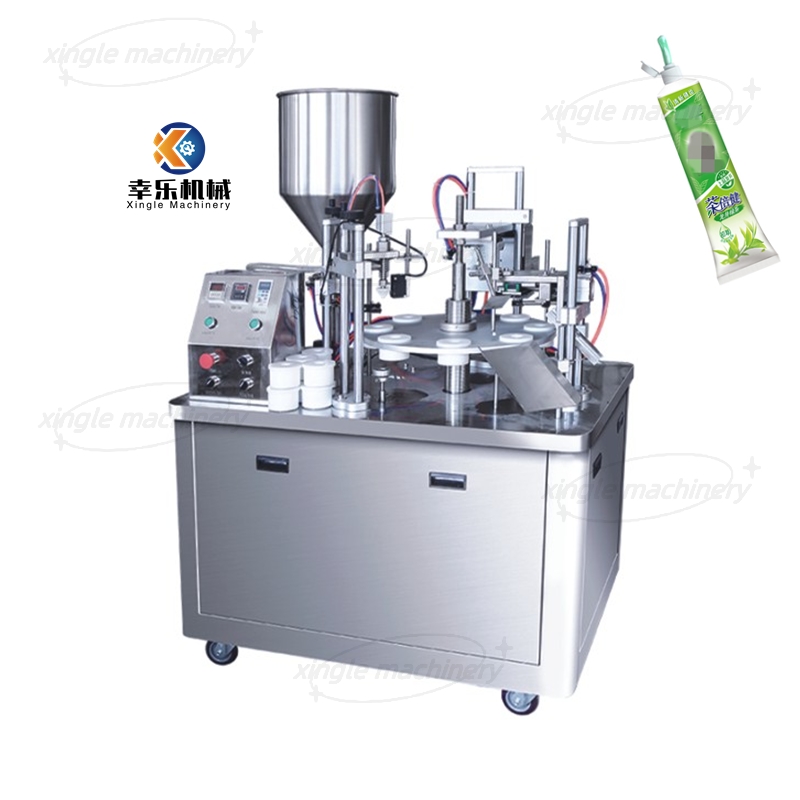

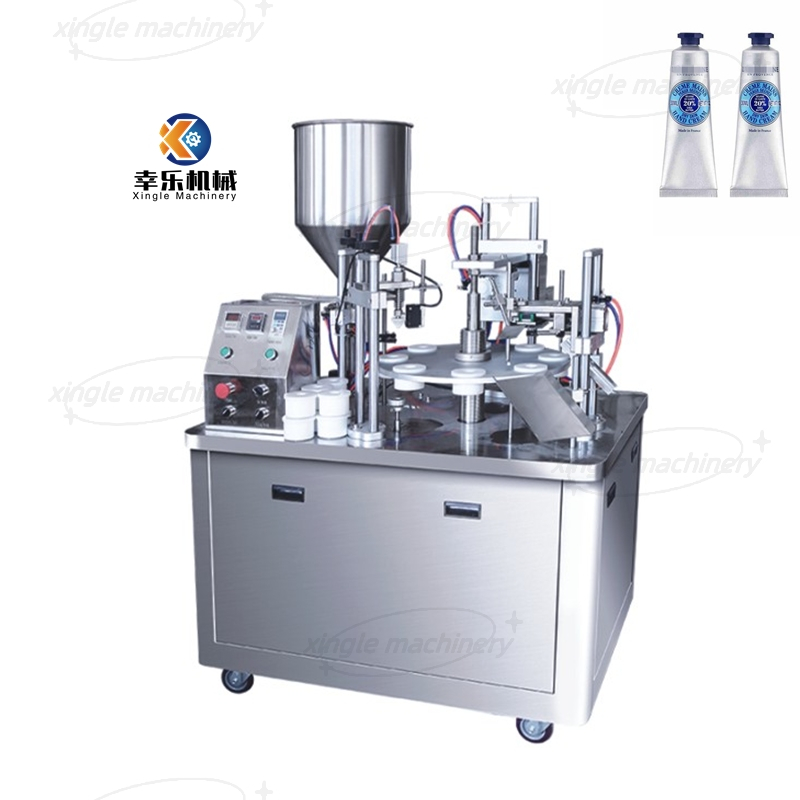

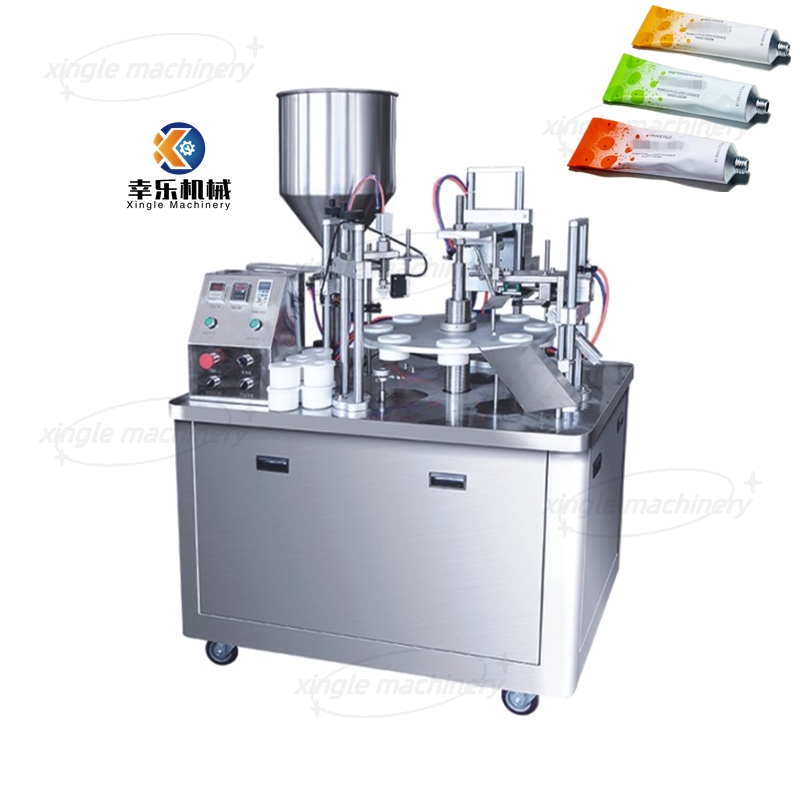

The cosmetic tube filling machine adopts semi-automatic operation, which has the characteristics of efficient production and flexible control. It can meet the filling and sealing requirements of aluminum tubes of different specifications and ensure the sealing and appearance quality of the product.
1) Wide compatibility
1. Suitable hose size: diameter ∅15-30mm, height 60-200mm, suitable for a variety of aluminum tubes and metal tubes.
2. Filling range optional: 5-50ml (small capacity) or 50-250ml (large capacity) to meet the needs of different industries.
2) Stable and efficient production
1. The production speed reaches 10-20 times/minute, which improves the production capacity of small and medium batches.
2. Semi-automatic operation mode, manual tube loading, automatic filling and sealing, balancing efficiency and cost.
3) Precision filling technology
1. Adopt high-precision metering system to ensure that the filling volume error is ≤±1% and reduce material waste.
2. Pneumatic sealing structure (need to be connected to an external 0.55-0.65Mpa air compressor), the seal is firm and leak-free.
4) Durable and energy-saving design
1. The whole machine power is only 0.75Kw, energy-saving and low-consumption, in line with environmental protection standards.
2. Stainless steel key components are corrosion-resistant and easy to clean, extending the life of the equipment.
5) Compact structure, easy to operate
1. The body size is 1000×780×1450mm, saving space, suitable for small workshops or laboratories.
2. Humanized control panel, simple parameter adjustment, no complex training required to get started.
Applicable industries
1. Cosmetics packaged in aluminum tubes such as creams, toothpastes, and hair dyes.
2. Aseptic filling of ointments and creams.
3. Food and chemical industry for filling viscous fluids such as seasoning pastes and adhesives.
Why choose our equipment?
✅ Easy to operate: semi-automatic design, no complex training is required.
✅ Easy maintenance: modular structure, time-saving and labor-saving cleaning and maintenance.
✅ Cost optimization: low energy consumption design, long-term use significantly reduces production costs.
