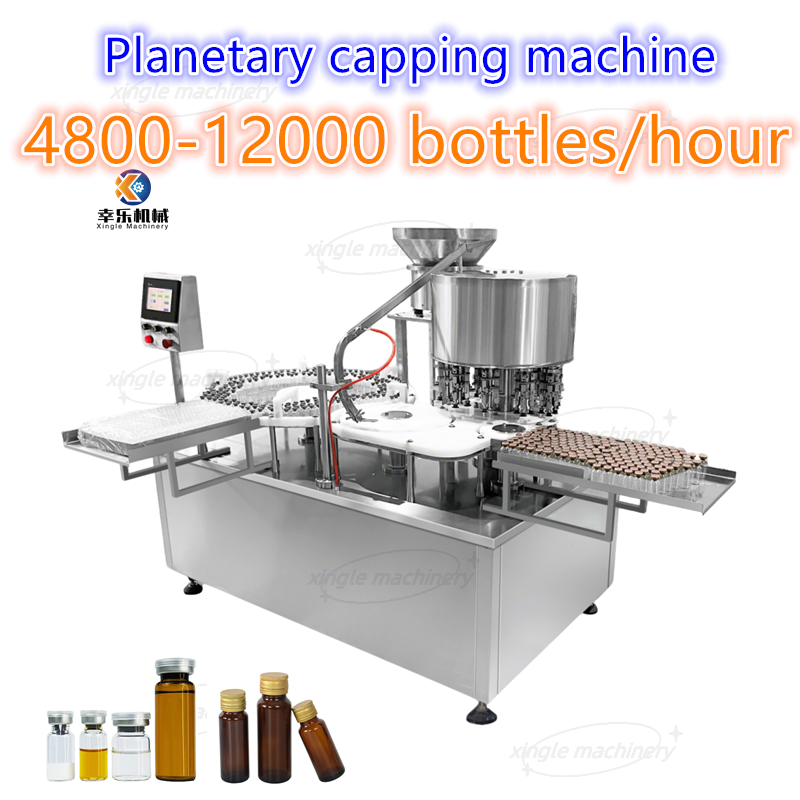

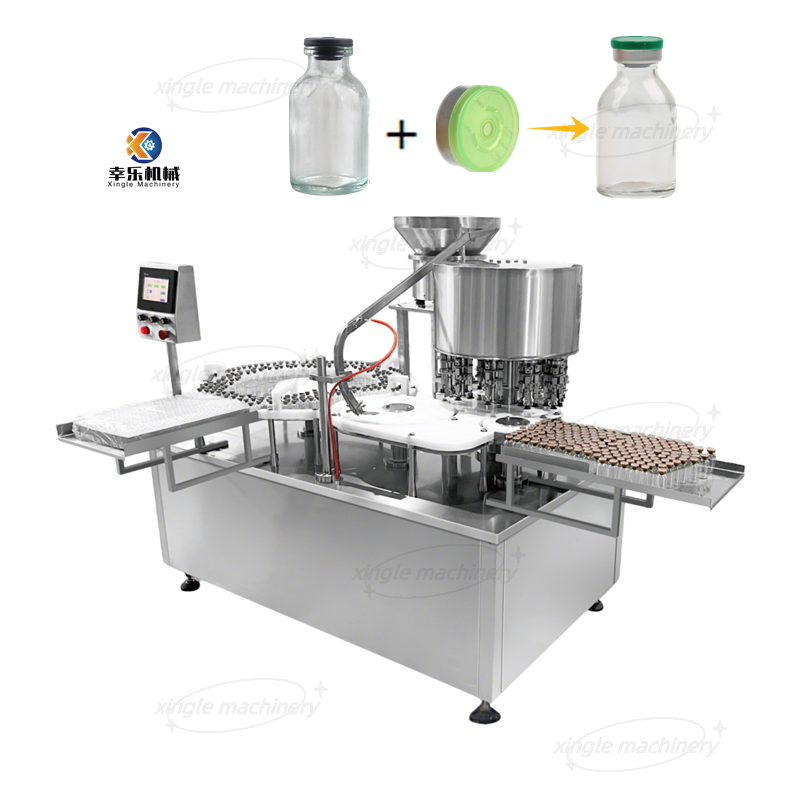

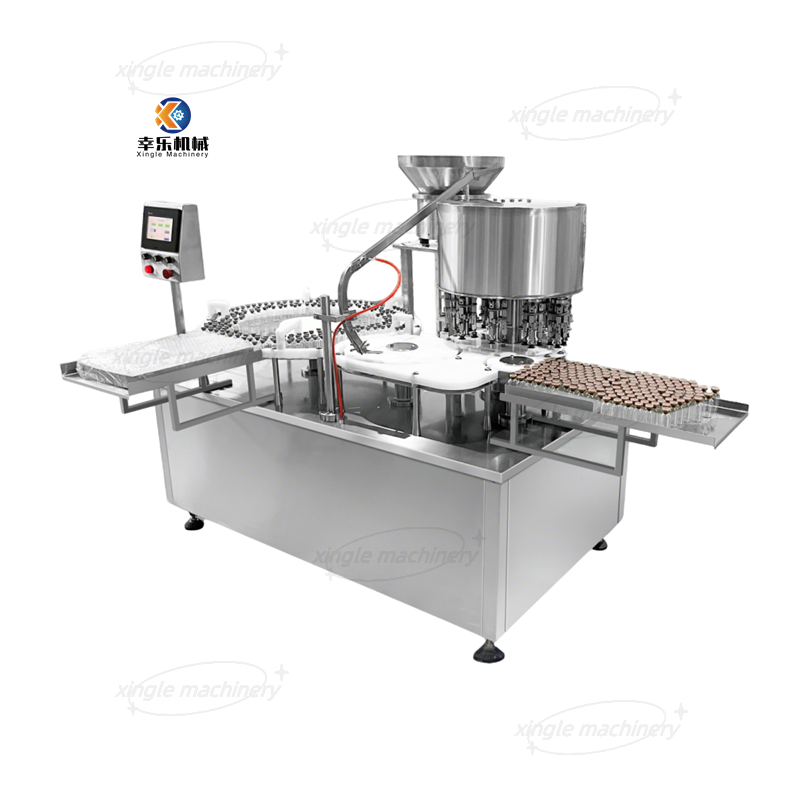

Auto Capping Machine employs an advanced planetary transmission structure and magnetic capping technology, perfectly achieving both crown cap crimping and screw-on cap sealing. Its scientifically designed structure and easy maintenance make it an ideal choice for improving production line efficiency and product packaging quality.

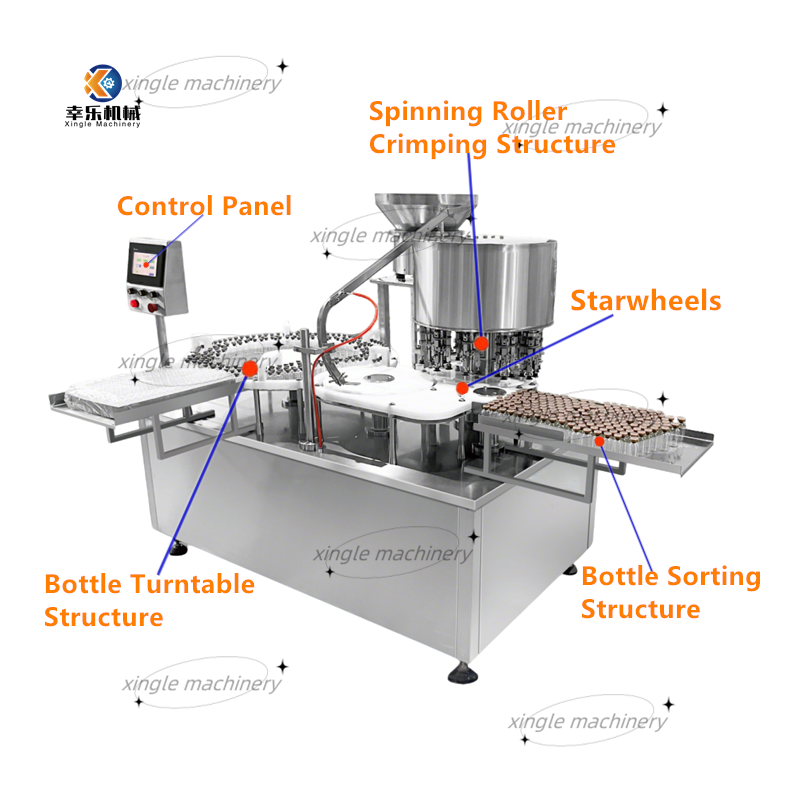

Core Components:
1. Bottle Infeed Star Wheel (or Conveyor Screw): Responsible for feeding bottles orderly and at fixed intervals into the capping area.
2. Center Positioning Dial: This is the core fixed component of the equipment, located at the center of the capping station.

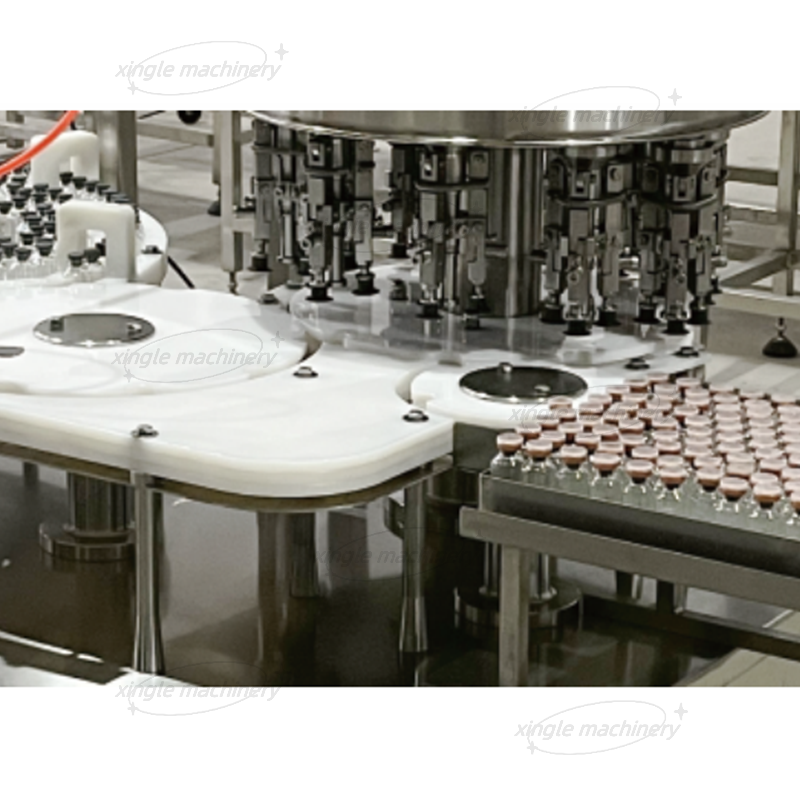

3. Capping Heads (Planetary): Multiple capping heads are evenly distributed on a large rotating disk (revolutionary disk).
4. Capping Head Guide Rail (or Cam): A precision cam track system controls the up-and-down movement of the capping heads during their revolution.
5. Bottle Outfeed Star Wheel: Sends the capped bottles out of the equipment.

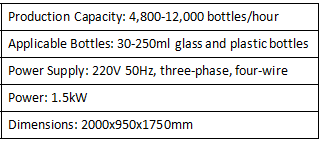

1. High Production Efficiency: Utilizing continuous planetary motion, the machine boasts a production capacity of 4800-12000 bottles/hour, meeting the needs of medium- and high-speed production lines.
2. Wide Applicability: The bottle capping machine can handle glass and plastic bottles ranging from 30-250ml, offering broad applicability and reducing equipment investment.
3. Capping System: Provides constant and gentle capping pressure, effectively preventing bottle crushing, flattening, or cap damage caused by bottle height errors or material brittleness, resulting in a tight and aesthetically pleasing seal.

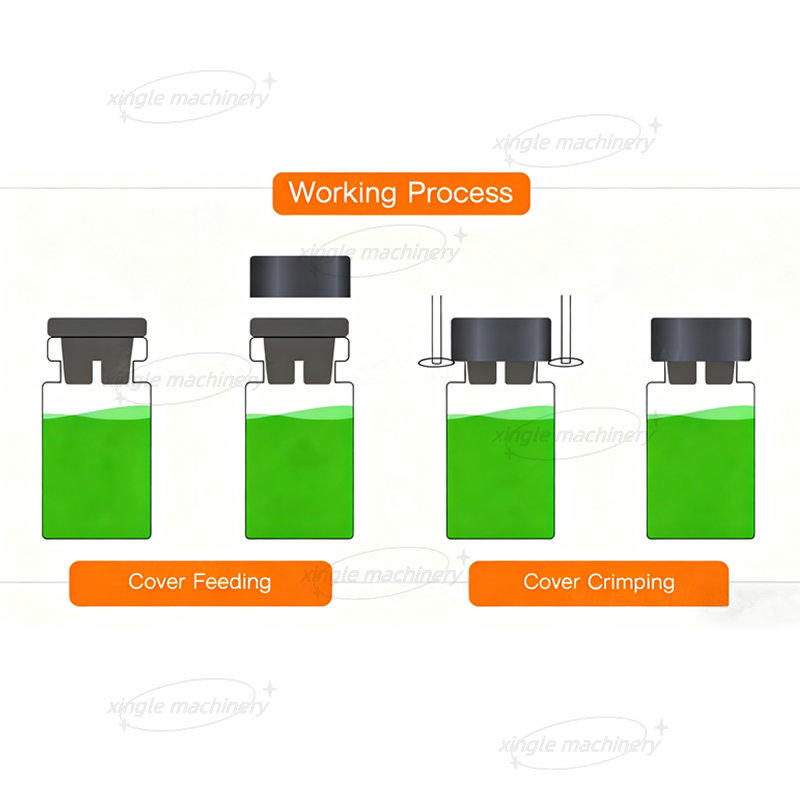

4. Flexible Capping Methods: By changing the capping head, the machine can easily achieve three- or four-blade magnetic crimping and screw capping.
5. Automatic Capping Machine: The pressure can be easily set by adjusting the magnetic torque.
6. When changing to different bottle sizes, only a few parts need to be replaced, such as the inlet star wheel, outlet star wheel, center dial, and capping head, allowing for quick adjustments and effectively reducing downtime.
7. Robust and Stable Structure: The machine body is made of high-quality materials, with a compact and robust structure (dimensions: 2000×950×1750mm), ensuring smooth operation, low noise, and a long service life.
8. Simple and Safe Operation: The user-friendly design and simple, reliable control system, along with necessary safety measures, ensure operator safety.
1. Aluminum caps or aluminum-plastic combination caps for sealing various bottled preparations.
1) Injectables: such as vials (small-dose powder injections, liquid injections).
2) Oral preparations: such as oral liquid bottles, small-dose syrup bottles.
3) Others: ophthalmic preparation bottles, lyophilized preparation bottles, etc.
2. For products requiring protection against evaporation, oxidation, or contamination of the contents.
Essence bottles, small perfume bottles, high-end skincare sample bottles.
3. For sealing chemical reagents and small-dose laboratory reagent bottles requiring strict sealing.
