XL-H120
XINGLE

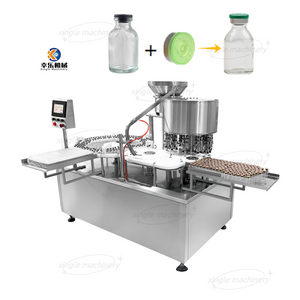

XL-H120 High Speed multifunctional pharmaceutical Capping Machine is a high-speed capping equipment driven by a servo motor. It has the characteristics of high automation, high precision and fast speed. Compared with traditional capping machines, servo high-speed capping machines use servo motors as the power source, which have higher accuracy and response speed, and can better adapt to the needs of the modern pharmaceutical industry for efficient and high-precision production.
This capping machine integrates seamlessly with bottle unscramblers, tablet counters, liquid fillers, induction sealers, and labeling machines to form a fully automated packaging line.
Powered by a servo motor instead of conventional AC or friction drives
Enables closed-loop speed and torque control
Supports different cap materials (plastic, aluminum, tamper-evident) with programmable parameters
Equipped with pneumatic or mechanical gripper belts
Holds bottles firmly during capping rotation
Especially effective for tall, narrow, or irregular-shaped bottles
Built-in overload protection automatically stops the machine when abnormal resistance is detected
Prevents damage to caps, bottles, and capping head
Displays fault alarms for quick troubleshooting
Operating speed range: 60–120 bottles/minute
Achieves 120 bottles/minute for small-diameter standard bottles
Suitable for high-volume continuous production lines
| Working speed | 60-120bottles/minute |
| Voltage | 220V/50-60HZ/3.0KW |
| Applicable bottle diameter | 19mm-115mm |
| Applicable height | 45mm-360mm(Bottles shorter than 78mm cannot use bottle clamps) |
| Applicable diameter of bottle | 135mm |
| Size | 2000*1000*1800mm |
| Weight | 180KG |
| Working air pressure | 0.6MPa-0.8MPa |
| Industry | Application |
| Pharmaceutical | Medicine bottles, syrup bottles, supplement jars – ensures sealing integrity during transport and storage |
| Nutraceutical | Vitamin bottles, collagen tablet jars, protein powder containers |
| Cosmetic & Personal Care | Shampoo bottles, lotion bottles, liquid soap containers |
| Food & Beverage | Sauce jars, honey bottles, spice containers, edible oil bottles |
High-speed servo capping machine key functions:
Prevents moisture ingress, oxidation, and leakage
Maintains product stability throughout shelf life
Enables fully automated capping without manual intervention
