Liquid filling machines are widely used in industries such as food, beverage, pharmaceutical, cosmetic, and chemical packaging. Whether the product is water, syrup, oil, detergent, lotion, or shampoo, the goal of a filling machine is the same: to deliver a controlled amount of liquid into each container accurately, efficiently, and consistently.
However, not all filling machines work in the same way. Different products have different flow characteristics, and different production lines have different speed, accuracy, and hygiene requirements. That is why understanding the working principle of a liquid filling machine is important before choosing equipment for your production line.
In this guide, we explain how a liquid filling machine works, the basic filling process, the key components involved, different filling principles, and the factors that affect filling accuracy.
If you want to understand how a liquid filling machine works, focus on these core points:
A liquid filling machine controls how product moves from the storage tank to the container
The working principle depends on the filling method, such as gravity, piston, pump, overflow, or net weight filling
Filling accuracy is affected by the product, machine design, settings, and operating conditions
Understanding these basics can help you choose the right machine, improve filling consistency, and reduce production problems.

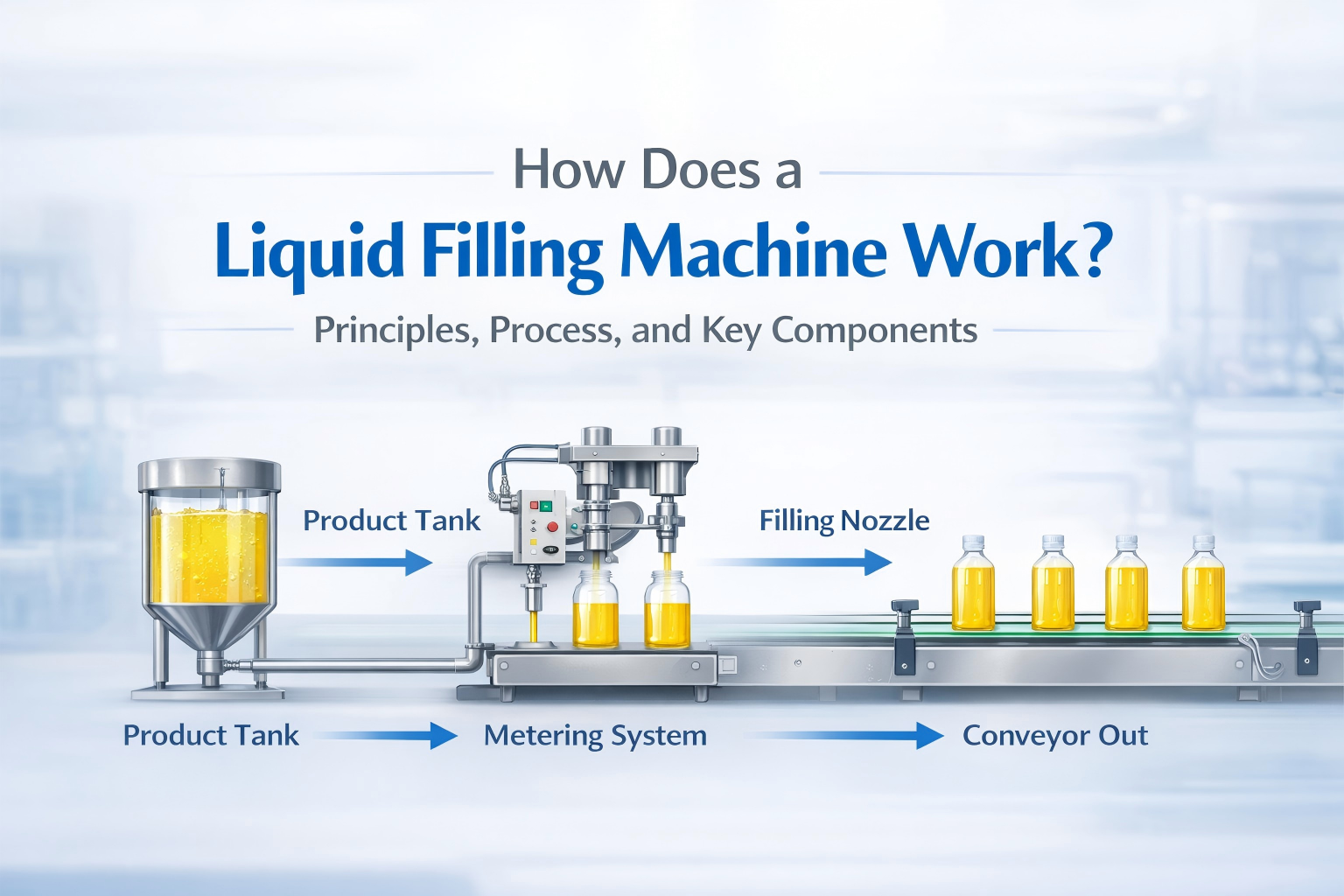

The working principle of a liquid filling machine is simple in concept: the machine transfers a specific amount of liquid from a product source into a container using a controlled filling method.
In practice, the process involves several coordinated steps. The machine must detect the container, position it correctly, control the flow of product, stop filling at the right moment, and move the filled container to the next stage of packaging.
Depending on the machine type, filling may be controlled by:
Volume
Liquid level
Pressure
Time
Weight
For example, a piston filling machine controls the product by using a piston cylinder to dispense a measured volume, while a net weight filling machine uses weighing sensors to stop filling when the target weight is reached.
At its core, the working principle is based on three functions:
Product supply
Volume or quantity control
Accurate discharge into the container
Although machine designs vary, most liquid filling systems follow a similar production sequence.
Empty bottles or containers are fed into the filling machine manually or by conveyor. In automatic lines, this step is usually connected to a bottle unscrambler or conveyor system.
The machine positions each bottle under the filling nozzle. Sensors or mechanical guides help ensure that the container is aligned correctly before filling begins.
Liquid product is transferred from a tank, hopper, or storage vessel through pipes or pumps toward the filling system.
The machine measures the amount of liquid to be filled. This may be done by piston displacement, pump rotation, timed flow, overflow level, or weighing control.
The filling nozzle dispenses the product into the container. Depending on the liquid, the nozzle may be designed to reduce dripping, splashing, or foaming.
Once the target volume, level, or weight is reached, the machine stops the flow of liquid.
The filled containers move to the next stage, such as capping, labeling, induction sealing, or cartoning.
A liquid filling machine depends on several key components working together. Each part plays a role in filling performance, speed, and accuracy.
| Component | Function |
|---|---|
| Product Tank or Hopper | Stores the liquid before filling |
| Pump or Piston System | Moves and meters the liquid |
| Filling Nozzle | Dispenses liquid into containers |
| Valves | Controls product flow on and off |
| Sensors | Detects bottles, position, or fill conditions |
| Conveyor System | Moves bottles through the machine |
| PLC / Control Panel | Controls machine settings and operation |
| Frame and Support Structure | Holds the machine components securely |
This is where the liquid is stored before being transferred into containers. In some systems, the tank is pressurized or equipped with level control.
This is one of the most important parts of the machine. It determines how the product moves and how the filling amount is controlled.
The nozzle directs liquid into the bottle. Nozzle design can affect anti-drip performance, foaming control, and filling speed.
Valves open and close to regulate the flow of liquid. Worn or poorly matched valves can lead to leaking or inaccurate filling.
Sensors are used to detect bottle presence, positioning, and other operating conditions. Accurate detection is essential in automatic production.
In automatic systems, the conveyor transports containers through the filling area and into the next packaging stage.
The control system allows operators to adjust filling volume, speed, timing, and machine parameters. In modern machines, recipes for different bottle sizes and products may also be saved.
Different filling machines use different principles depending on the product and production requirement.
Gravity filling relies on the natural flow of liquid from a higher product tank into the bottle.
How it works:
Liquid is stored above the filling nozzle
The valve opens
Product flows down by gravity
The flow stops when the target volume or timed cycle is completed
Best for:
Water
Thin liquids
Low-viscosity products
Piston filling uses a piston to draw a measured amount of product into a cylinder and then push it into the bottle.
How it works:
The piston retracts and draws in product
The piston moves forward
The measured product is discharged through the nozzle
The cycle repeats for each bottle
Best for:
Syrup
Honey
Shampoo
Cream
Sauce
Pump filling uses a pump to move product from the tank to the nozzle.
How it works:
The pump starts and transfers product
The machine controls output by time, pulse count, or rotation
Filling stops when the set value is reached
Best for:
Water
Oil
Detergent
Lotion
Medium-viscosity liquids
Overflow filling is used when all bottles must have the same visible fill level.
How it works:
Product flows into the bottle
Excess liquid returns through an overflow path
The visible fill level remains consistent across bottles
Best for:
Transparent bottles
Water-like liquids
Products where shelf appearance matters
Net weight filling uses a weighing system to control the filling amount.
How it works:
The bottle is placed on a scale
Product flows into the bottle
The machine monitors weight in real time
Filling stops when the target weight is reached
Best for:
Edible oil
Chemical liquids
High-value products sold by weight
Filling accuracy is one of the most important performance indicators for a liquid filling machine. Even a good machine can produce unstable results if operating conditions are not properly controlled.
Liquid viscosity
Thick or thin liquids flow differently and may require different filling methods.
Temperature changes
Temperature can change product viscosity, especially in oils, syrups, gels, and creams.
Air pressure stability
Pneumatic systems need stable air pressure to maintain consistent movement.
Pump or piston calibration
Incorrect calibration can cause overfilling or underfilling.
Valve condition
Worn valves may leak or fail to stop product flow precisely.
Nozzle design
Poor nozzle selection may lead to dripping, foaming, or splash.
Bottle consistency
Irregular bottle dimensions can affect filling position and appearance.
Machine speed
Running too fast may reduce consistency, especially for foamy or viscous liquids.
| Factor | Possible Effect on Filling |
|---|---|
| Viscosity change | Inconsistent volume |
| Temperature fluctuation | Flow instability |
| Poor calibration | Overfill or underfill |
| Worn valve | Dripping or leakage |
| Incorrect nozzle | Foam, splash, slow filling |
| Conveyor misalignment | Bottle positioning errors |
The working process also differs depending on whether the machine is automatic or semi-automatic.
| Type | How It Works | Suitable For |
|---|---|---|
| Semi-Automatic Liquid Filling Machine | The operator places bottles manually, starts filling, and removes filled bottles | Small batches, flexible production, lower budgets |
| Automatic Liquid Filling Machine | Bottles move automatically by conveyor, filling cycles are controlled by the machine, and output is continuous | Medium to large production, integrated lines, higher efficiency |
In a semi-automatic setup:
The operator places the bottle
The operator starts the filling cycle by switch or pedal
The machine fills the container
The operator removes the bottle
This is suitable for smaller-scale operations and frequent product changes.
In an automatic setup:
Bottles move automatically into position
Sensors detect bottle presence
Filling starts automatically
Filled bottles move directly to capping or labeling
This is more efficient for high-output production and reduces labor dependence.
Understanding the working principle of a liquid filling machine also helps identify common operating problems.
Inaccurate filling volume
May be caused by poor calibration, unstable viscosity, or worn metering parts
Dripping after filling
Often related to nozzle design, valve wear, or product stringing
Foaming during filling
Usually happens when filling speed is too high or nozzle position is not suitable
Bottle misalignment
Caused by conveyor issues, guide rail problems, or sensor errors
Nozzle blockage
May occur with viscous products, residue buildup, or insufficient cleaning
Machine not starting
Can result from electrical issues, emergency stop activation, or air supply problems
Check air supply and power status
Inspect filling nozzles and valves
Confirm product viscosity and temperature
Recalibrate the filling setting
Verify bottle positioning and sensor detection
Clean product contact parts regularly
So, how does a liquid filling machine work? In simple terms, it uses a controlled method to transfer a specific amount of liquid from a product source into a container. The exact working principle depends on the machine type, the product characteristics, and the filling requirement.
Gravity, piston, pump, overflow, and net weight filling systems all work differently, but they share the same goal: accurate, stable, and efficient liquid packaging. The filling process relies on proper coordination between the tank, metering system, nozzle, valve, sensors, conveyor, and control system.
If you understand the filling principle and the factors that affect machine performance, it becomes much easier to choose the right filling solution for your product and production line.
Need help choosing a liquid filling machine based on your product type, viscosity, bottle size, and production speed? Contact us for a suitable filling solution recommendation.
A liquid filling machine can control filling by volume, time, pressure, level, or weight depending on the machine design and application.
Piston filling is one of the most common principles used for viscous liquids because it provides precise volumetric control.
Unstable filling accuracy can be caused by viscosity changes, temperature variation, worn valves, poor calibration, nozzle problems, or inconsistent operating conditions.
Gravity filling uses the natural flow of liquid, while pump filling uses a pump mechanism to transfer and control the product.
It depends on production needs. Automatic machines are better for higher output and integrated lines, while semi-automatic machines are suitable for smaller batches and flexible operation.
There is no single most important component, but the pump or piston system, nozzle, valve, and control system all have a major impact on filling performance and accuracy.
